Numéro de pièce du fabricant
HF240T-SM-SF-12
Garantie
?
24 mois
EAN
4752284001520

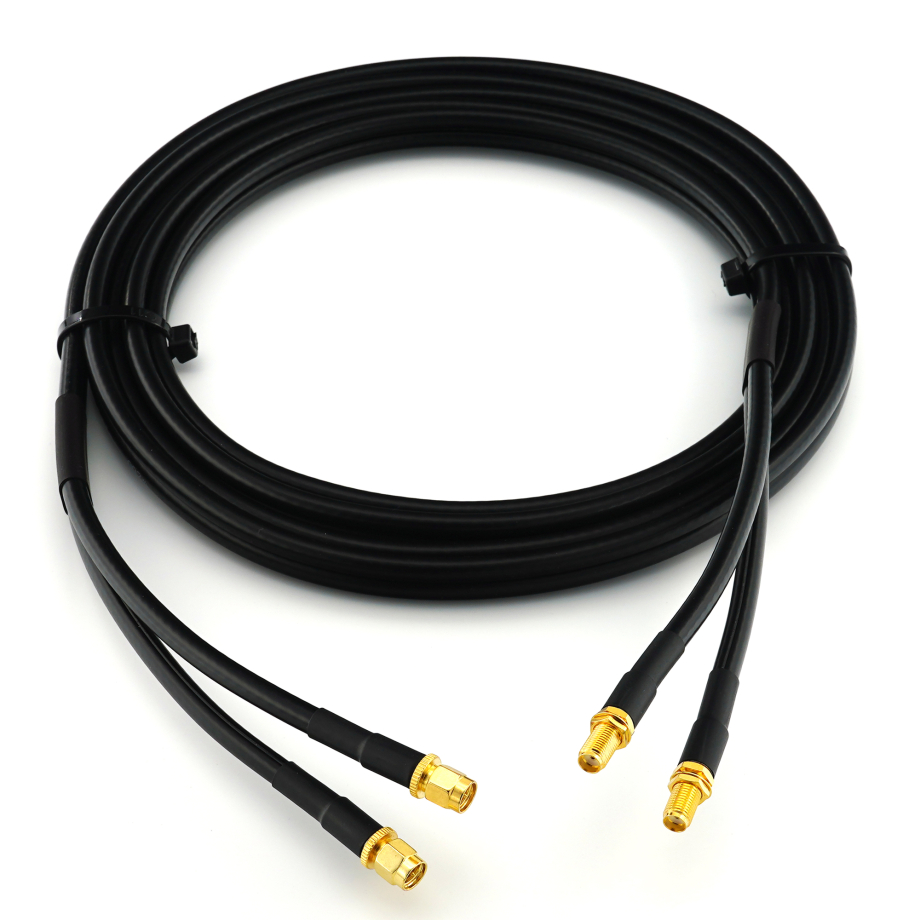

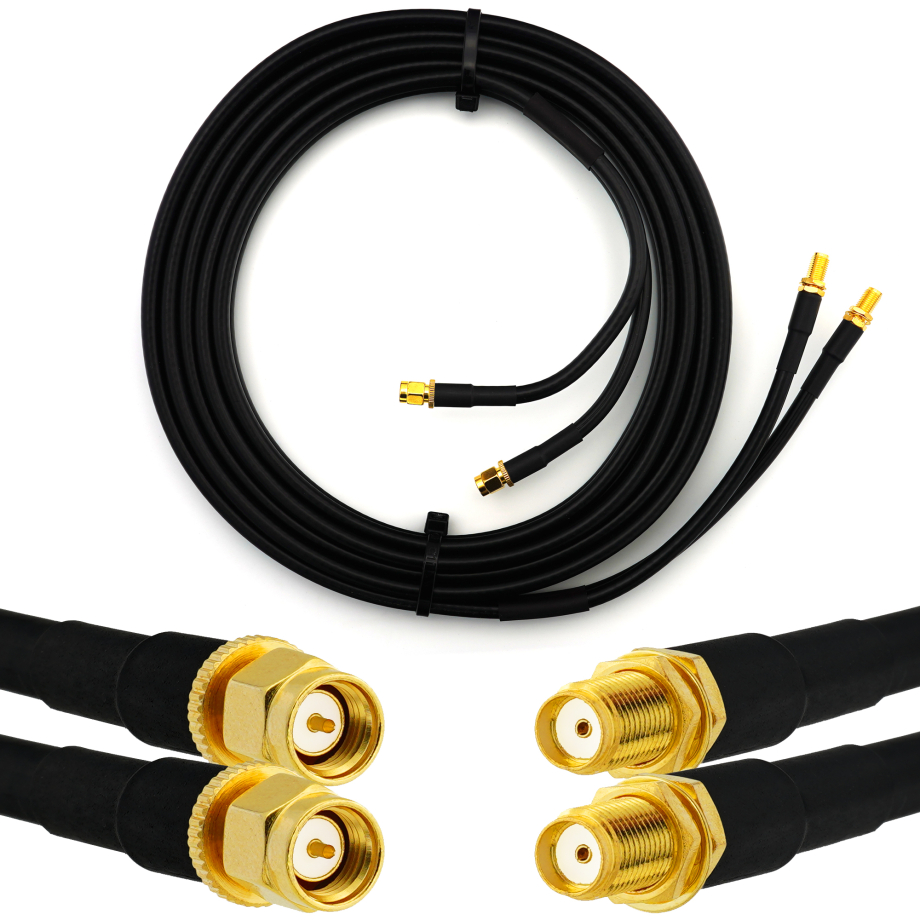

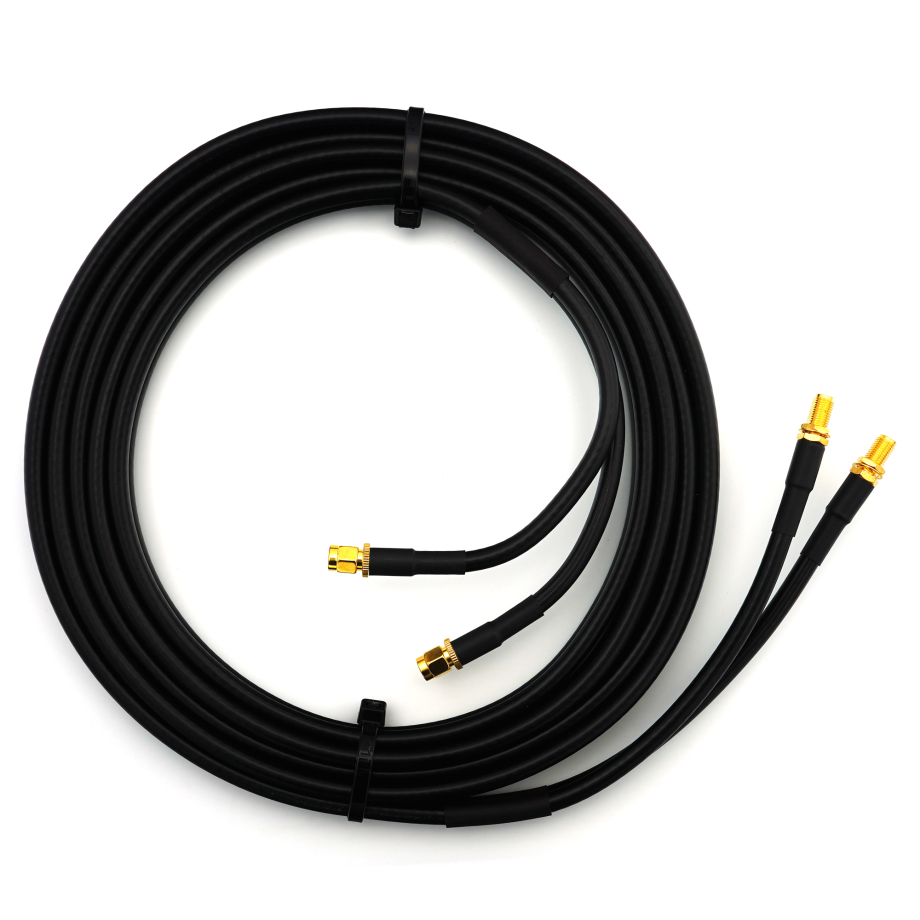

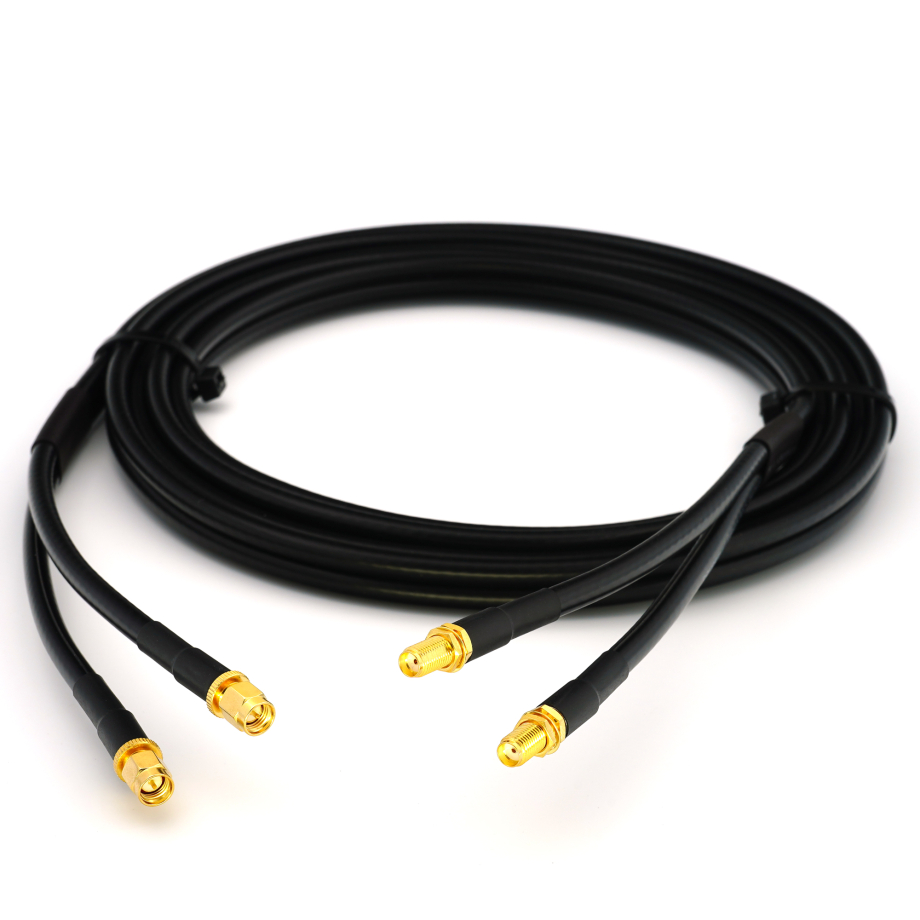

SMA mâle vers SMA femelle 12m câble coaxial double — HF240 (équivalent à LMR240)
en stock
?
51.23 €
51.23 €
Caractéristiques
Câble et Connecteur
Connecteur
(2) SMA Male - (2) SMA Female
Type de câble
LMR240 Twin
Longueur de câble
12 m
Conducteur
Cuivre pur
Diamètre du conducteur
Ø 1,40 mm
Diélectrique
PEG
Diamètre du diélectrique
Ø 3,80 ± 0,10 mm
Blindage
Feuilles d'aluminium
Dimensions du blindage
Ø 3,90 ± 0,10 mm
Couverture du blindage
100 %
Tresse
Cuivre étamé
Dimensions de la tresse
Ø 4,30 ± 0,10 mm
Couverture de la tresse
77 %
Gaine
PVC
Diamètre de la gaine
Ø 6,10 ± 0,10 mm mm
Paramètres Physiques
Couleur
Noir
Dimensions
19 x 19 x 5 cm
Température de fonctionnement
-30 °C à 70 °C
Environnement
Intérieur, Extérieur
Le colis comprend
Unités
1 pièces
