Numéro de pièce du fabricant
JCG605LM4
Garantie
?
24 mois
EAN
0708747435795
4G MIMO 4x4 Antenne Cellulaire 3.5dBi IP67, SMA Male
en stock
?
46.90 €
46.90 €
Description détaillée
Caractéristiques techniques
Produits compatibles
Caractéristiques
Réseau Mobile
Génération de réseau mobile
4G (LTE)
Antenne
Conception d'Antenne
Toit
Gamme de Fréquences et Gain de l'Antenne Mobile
0.698 - 0.960 (GHz) 3.5 (dBi), 1.710 - 2.690 (GHz) 3.5 (dBi)
Gain D'Antenne Mobile
3.5 dBi
Polarisation
Linéaire
Longueur de Câble
3 m
VSWR
< 3
Impédance
50 Ω
Connecteur
Connecteurs RF
(4) SMA Male
Paramètres Physiques
Couleur
Noir
Matériel
Plastique ABS
Code de protection d'entrée
IP67

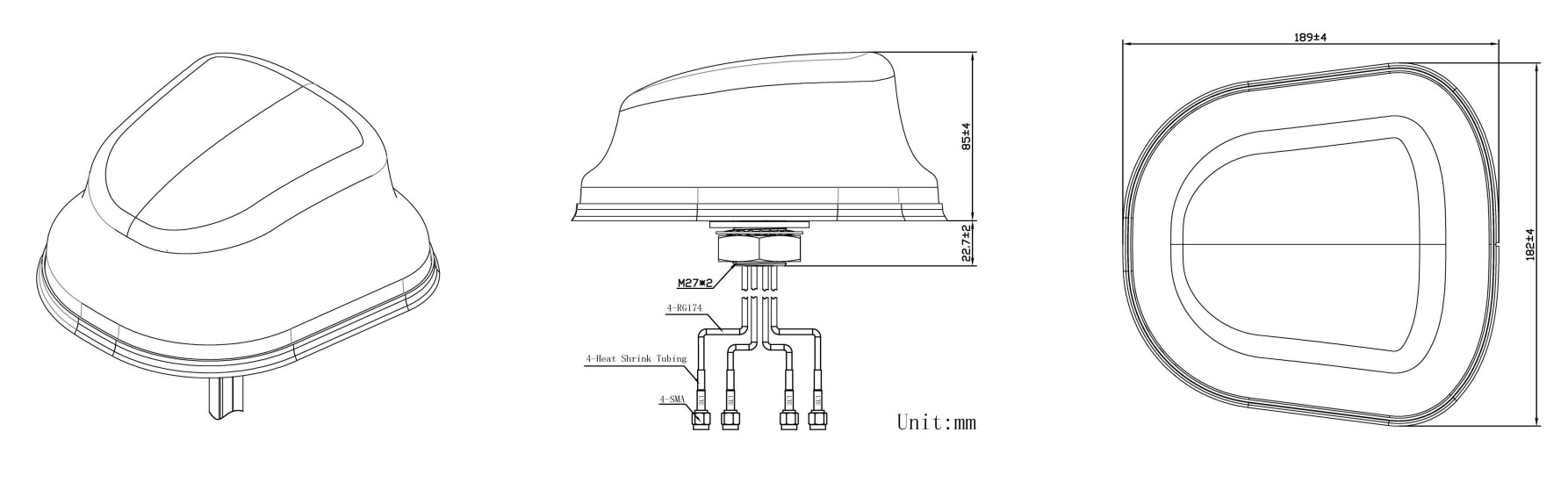

Dimensions
185 x 180 x 90 mm
Température de fonctionnement
-40 °C à 85 °C
Environnement
Extérieur
Méthode de montage
Vis
