Nom du produit
MikroTik mANTBox 19s
Garantie
?
24 mois
Numéro de pièce du fabricant
RB921GS-5HPacD-19S
EAN
4752224000873

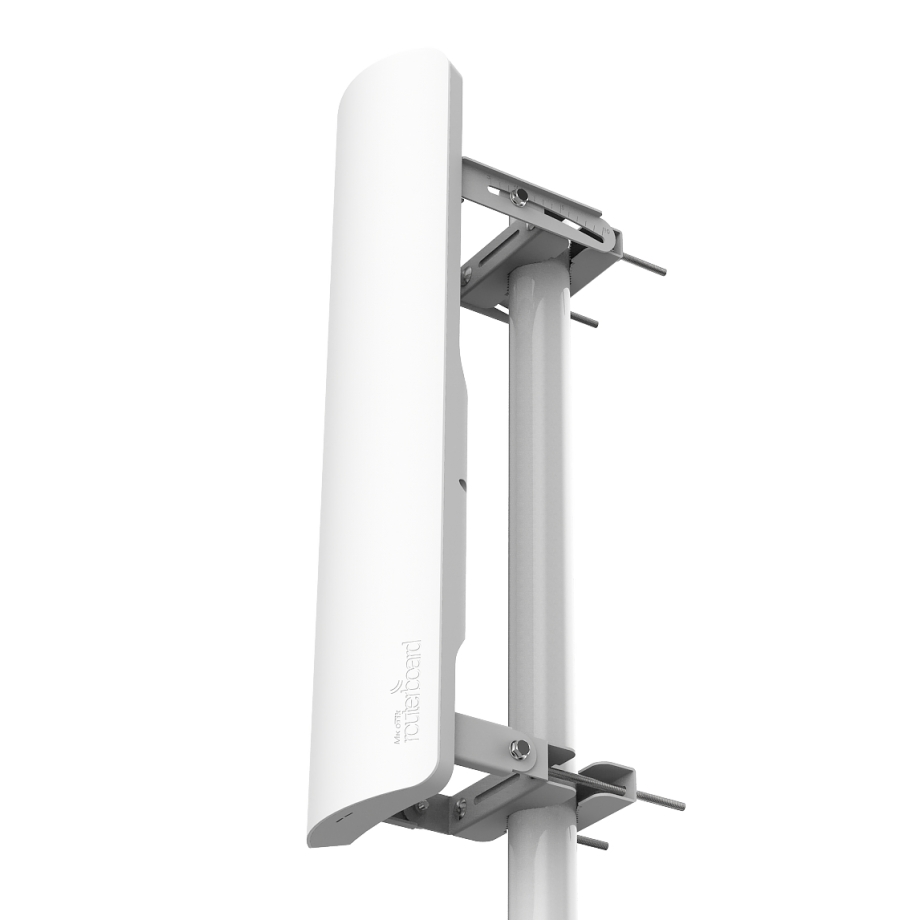

MikroTik mANTBox 19s
Cet article a été abandonné
Nous vous recommandons d'utiliser le produit présenté ci-dessous
MikroTik mANTBox ax 15s
L22UGS-5HaxD2HaxD-15S
Alternatives disponibles
Description détaillée
Comparaison avec des produits similaires
| Norme de réseau sans fil | |||||
| 802.11a/n/ac, Wi-Fi 5 | 802.11a/n/ac , Wi-Fi 5 | 802.11b/g/n, Wi-Fi 5 | 802.11a/b/g/n/ac, Wi-Fi 5 | ||
| Fréquence radio 2.4GHz | |||||
| 300 Mbps | 300 Mbps | ||||
| Fréquence radio 5GHz | |||||
| 867 Mbps | 867 Mbps | 867 Mbps | |||
| Gamme de Fréquences et Gain de l'Antenne Sans Fil | |||||
| 5.170 - 5.835 (GHz) 19 (dBi) | 5.170 - 5.875 (GHz) 15 (dBi) | 5.170 - 5.825 (GHz) 15 (dBi) | 2.312 - 2.732 (GHz) 12 (dBi) | 2.412 - 2.484 (GHz) 12 (dBi), 5.150 - 5.875 (GHz) 15 (dBi) | |
| Ethernet Ports | |||||
| 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | ||
| SFP Ports | |||||
| 1 x 1G SFP | 1 x 1G SFP | 1 x 1G SFP | |||
| USB Ports | |||||
| 1 x USB-A 2.0 | |||||
| Jeu de puces | |||||
| QCA9557, 1 core, 720 MHz | QCA9557, 1 core, 720 MHz | AR9342, 1 core, 600 MHz | 4 core IPQ-4019 716 MHz | ||
| Capacité de RAM | |||||
| 128 MB | 128 MB | 64 MB | 256 MB | ||
| Mémoire de stockage | |||||
| 128 MB | 128 MB | 128 MB | 16 MB | ||
| Max. consommation | |||||
| 13 W | 13 W | 11 W | 21 W | ||
| Norme de réseau sans fil | 802.11a/n/ac, Wi-Fi 5 | 802.11a/n/ac , Wi-Fi 5 | 802.11b/g/n, Wi-Fi 5 | 802.11a/b/g/n/ac, Wi-Fi 5 | |
| Fréquence radio 2.4GHz | 300 Mbps | 300 Mbps | |||
| Fréquence radio 5GHz | 867 Mbps | 867 Mbps | 867 Mbps | ||
| Gamme de Fréquences et Gain de l'Antenne Sans Fil | 5.170 - 5.835 (GHz) 19 (dBi) | 5.170 - 5.875 (GHz) 15 (dBi) | 5.170 - 5.825 (GHz) 15 (dBi) | 2.312 - 2.732 (GHz) 12 (dBi) | 2.412 - 2.484 (GHz) 12 (dBi), 5.150 - 5.875 (GHz) 15 (dBi) |
| Ethernet Ports | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | |
| SFP Ports | 1 x 1G SFP | 1 x 1G SFP | 1 x 1G SFP | ||
| USB Ports | 1 x USB-A 2.0 | ||||
| Jeu de puces | QCA9557, 1 core, 720 MHz | QCA9557, 1 core, 720 MHz | AR9342, 1 core, 600 MHz | 4 core IPQ-4019 716 MHz | |
| Capacité de RAM | 128 MB | 128 MB | 64 MB | 256 MB | |
| Mémoire de stockage | 128 MB | 128 MB | 128 MB | 16 MB | |
| Max. consommation | 13 W | 13 W | 11 W | 21 W |
Produits compatibles
Caractéristiques
Réseau Sans Fil
Génération
WiFi 5
Norme
802.11n/ac
MIMO
5GHz 2x2
Fréquence
5GHz
Fréquence radio 5GHz
867 Mbps
Antenne
Conception d'Antenne
Secteur
Gamme de Fréquences et Gain de l'Antenne Sans Fil
5.170 - 5.835 (GHz) 19 (dBi)
Largeur du faisceau
120 °
Polarisation
Double Linéaire
Interface
Ports RJ45
(1) 1 Gbps
Ports SFP
(1) 1G SFP
Gestion
Ethernet, Wi-Fi
Caractéristiques du Système
Jeu de puces
QCA9557, 1 core, 720 MHz
Capacité de RAM
128 MB
Mémoire de stockage
128 MB
Puissance
Méthode de puissance
Adaptateur CA/CC, PoE passif 24V
Alimentation
Adaptateur CA/CC Externe
Tension d'entrée prise en charge
8 - 30 V DC
Max. consommation
13 W
Connecteur d'alimentation
Prise CC 2.1 x 5.5 mm
Adaptateur PSU / POE
24 V DC 0.8 A
Paramètres Physiques
Couleur
Blanc
Dimensions
598 x 152 x 78 mm
Température de fonctionnement
-40 °C à 70 °C
Environnement
Extérieur
Méthode de montage
Montage sur Poteau
Le colis comprend
Alimentation externe
Inclus
Logiciel
MikroTik
RouterOS Level 4
